Program Appearance

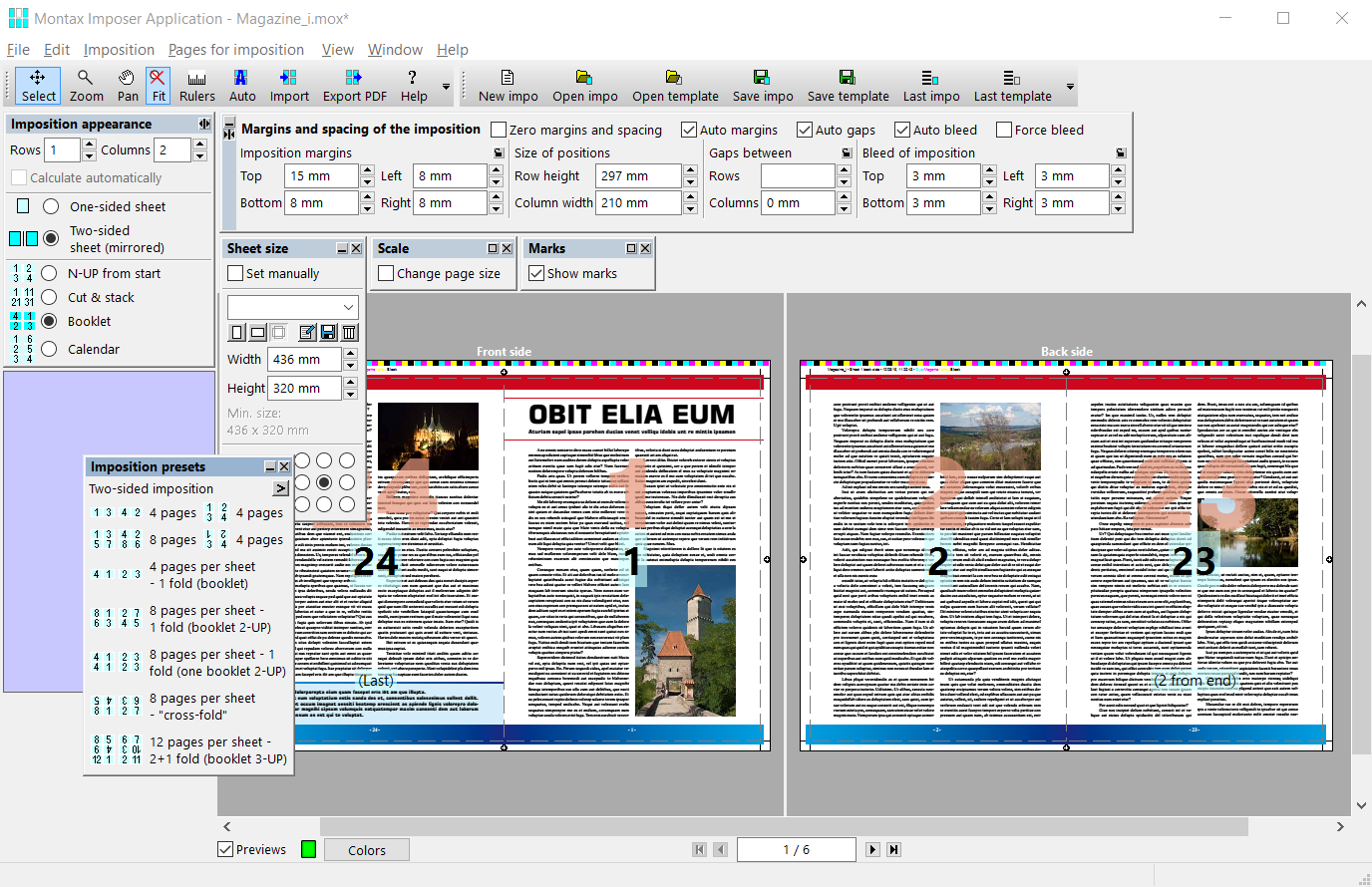

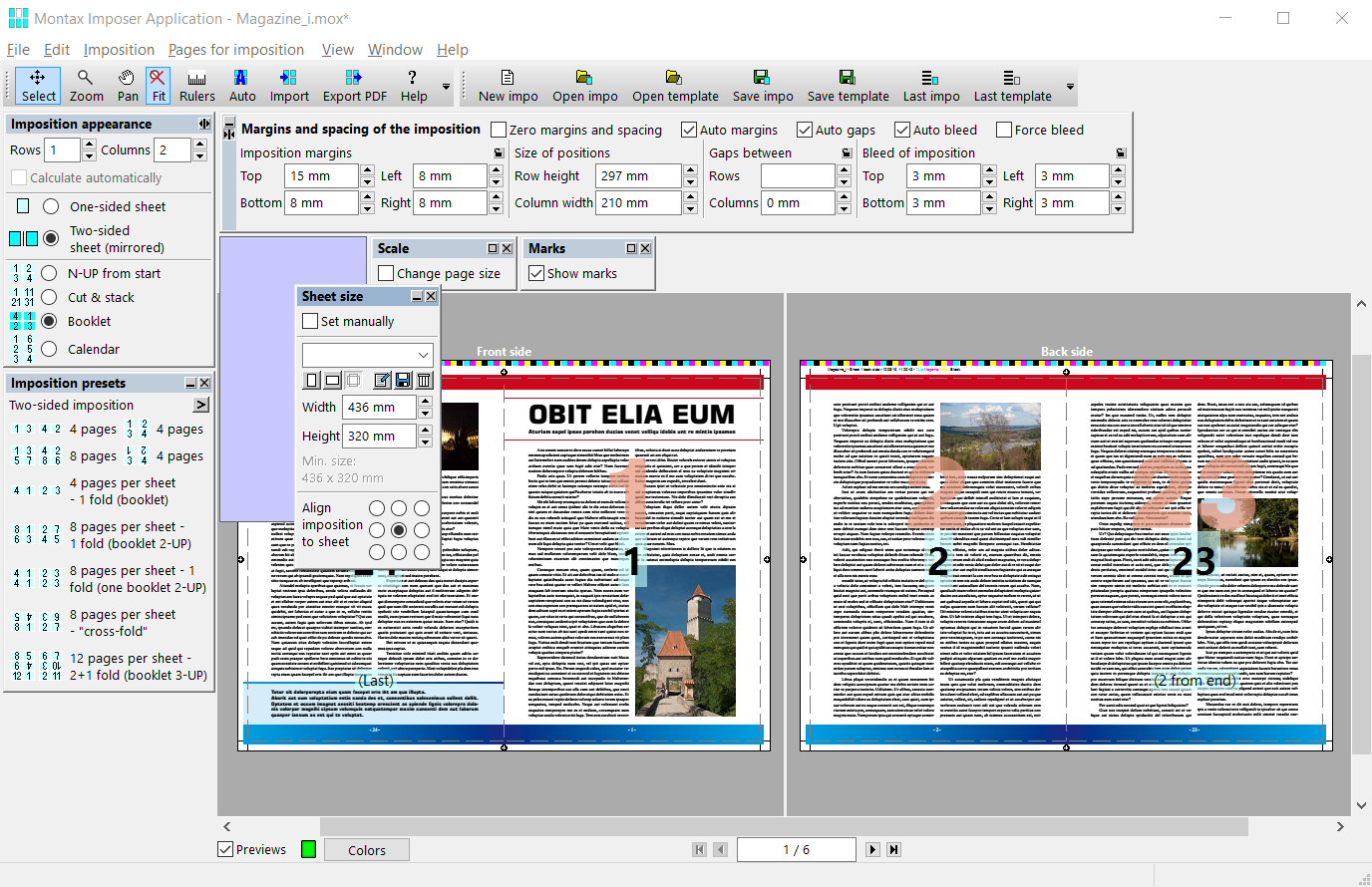

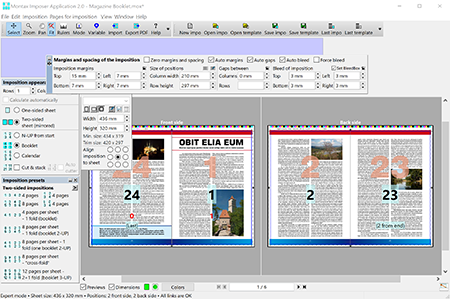

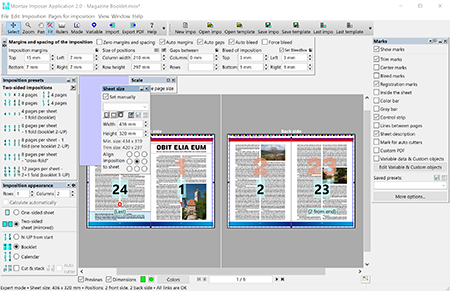

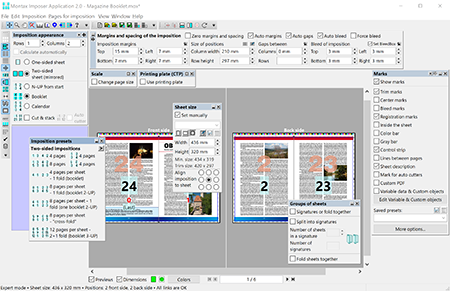

The main window of Montax imposer is displayed when the program is run, containing menu, toolbar and the main work area. The work area shows a imposition preview, which can be interactively changed. Furthermore, it is possible to display a variety of palettes, which allow the user to control various features of the program. These palettes can be floating freely or they can be grouped on the left side of the work area or above it. If the palettes cannot fit a single column on the left (or a row above) a second column (or row) is formed automatically.

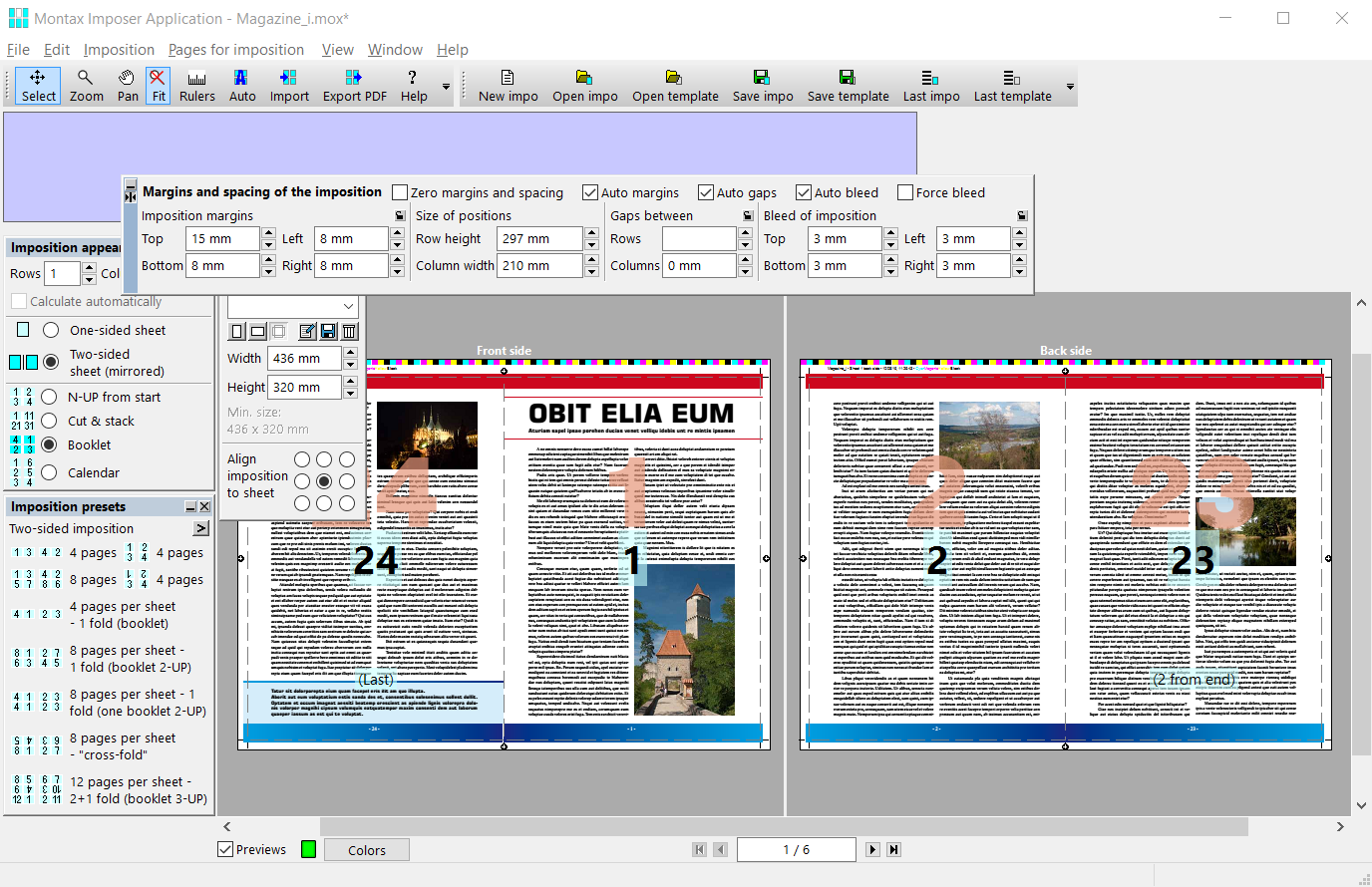

The only exception is a horizontally organized Info palette, which can only be placed above the work area and it always stays on the 1st position and other palettes are placed below it. Unlike other palettes it can also be placed directly under the toolbar. Of course, this palette can also be free floating.

Plug-in version: Whenever there is not a calculation (PDF export or preview, page import etc.) in progress the user can switch between Montax Imposer and Adobe Acrobat. If we change a PDF file opened in Montax in Adobe Acrobat it is automatically updated in Montax.

Only one imposition file can be opened in Montax at a time. This file can, however, contain several separate (or interconnected in a certain way) impositions and it is possible to navigate through them using the tabs under the work area.
